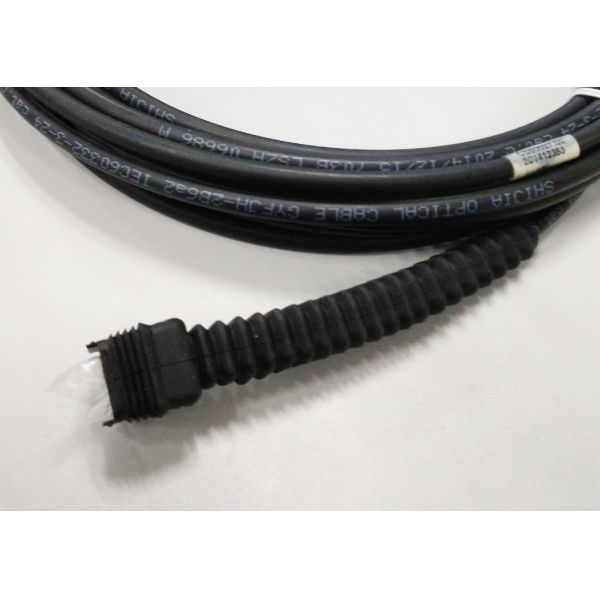

FTTA Water Proof Nokia NSN Multimode Duplex Fiber Optic Cable
FTTA Water Proof Nokia NSN Duplex LC Multimode OM1 OM2 50/125 62.5/125 CPRI Fiber Optic Patch Jumper 5.0mm designed for harsh environmental applications with IP67 waterproof rating.
Product Overview
Nokia NSN outdoor patch cord features IP67 waterproof connectors with NOKIA compatible waterproof sealing on one end and standard SC/LC/FC/ST/E2000 connectors on the other end. Designed to exceed ODVA requirements and meet IP66/67 environmental sealing ratings, these cables are ideal for industrial, fiber to the antenna, and harsh environment applications.
Key Features
- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
- IP68 protection, salt-mist proof, and EMI protection
- High shock, vibration, and mechanical resistance
- Broad temperature range and wide range of indoor and outdoor cables
- Easy, reliable and cost-effective installation
- Anti-rodent protection and damage resistance
Applications
- Fiber-to-the-Antenna (FTTA): Latest and next-generation mobile communication systems (GSM, UMTS, CDMA2000, TD-SCDMA, WiMAX, LTE, etc.)
- Automation and Industrial Cabling: Provides highest reliability and operating safety with ruggedized design
- Surveillance Systems: Compact size and robust design for security camera installations
- Naval and Ship Building: High corrosion resistance for humid and salty environments
- Broadcast: Mobile cabling systems for temporary installations and natural hazard scenarios
Technical Specifications
| Parameter |
Specification |
| Connector |
Side A: DLC/UPC singlemode (multimode) with Nokia NSN boot
Side B: ODVA connector, DLC(duplex LC), SC, ST, FC, MPO/MTP |
| Fiber Count |
2 cores, 4 cores and more |
| Fiber Type |
SM (G.652D/G.657A)
MM (OM1/OM2/OM3) |
| Jacket Materials |
LSZH/ OFNR/ PVC/ PE |
| Cable Diameter |
4.8mm, 7.0mm |
| Insertion Loss |
≤ 0.3dB (PC/UPC/APC)
≤ 0.3dB (UPC) |
| Return Loss |
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC) |
| Operating Temperature |
-14℃ to +85℃ |
| Storage Temperature |
-40℃ to +85℃ |
Product Images
Manufacturing Capabilities
KOCENT OPTEC LIMITED supplies OEM and ODM services for all types of fiber optic patch cords, specializing in outdoor field operations including ODVA, NSN, PDLC, DLC, ODC, RRU, TPU, CPRI, Optitap, Mini SC, OM3, and OM4 patch cords. Our products are used in Telecom 3G, 4G, LTE, BBU, RRU, RRH base stations with complete production equipment and strict QC processes.
OEM/ODM Services Available: We can display your brand LOGO on cables, packaging bags, labels, or anywhere required. Our OEM and ODM services are always ready to accommodate your branding needs.
Packaging & Shipping
- Packaging: Standard Export Packing - Carton box, wooden box, wooden pallet
- Shipping Methods: International express (UPS, TNT, DHL), International air, and sea freight
